Water Electrolysis Hydrogen Generators and Plants

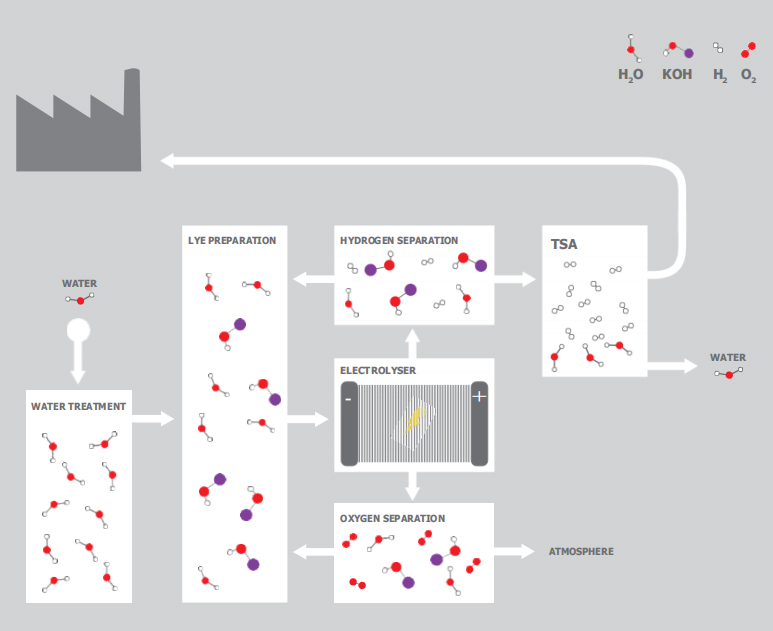

We are the leading manufacturer for hydrogen generators (Hygear Netherlands) within India. We make hydrogen by using the process of electrolysis using alkaline. It is one of the more extensively used and tested technology currently available and provides a safer as well as more secure alternative to the traditional hydrogen delivery via trailers. The capacities we offer range from 10Nm3/hr to 1000 Nm3/hr. Pre-treated water is pumped into the lye tank, where the lye preparation is completed and then sent into the electrolyser. In the electrolyser water is divided into oxygen and hydrogen gas with the help of electricity. Hydrogen gas is produced from the cathode end of an electrolyser and is released through holes in the separator plate for the cathode side toward the hydrogen manifold channels.

At the same time, oxygen gas is evolved at the anode side of the cells. The reaction involved at the anode:

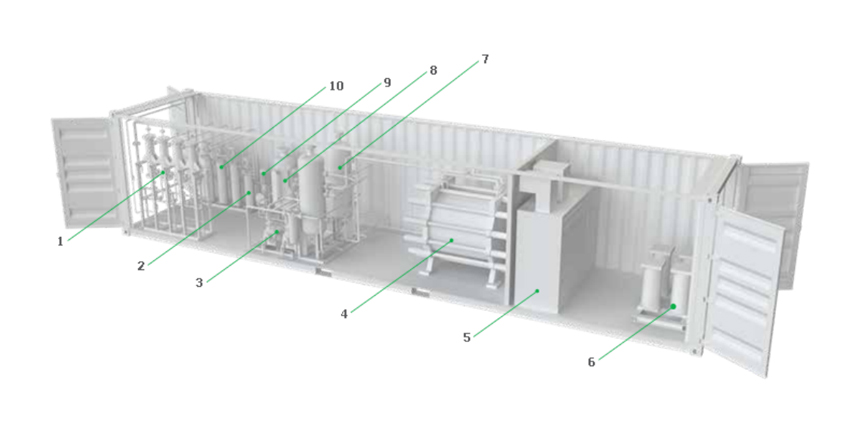

WHAT IS INSIDE

1. Hydrogen Cooler
2. Hydrogen Purifier
3. Lye solution circulation pump
4. Electrolyzer Stack
5. Control Cabinet
6. Transformer
7. Gas lye treater
8. Demineralised Water Tank
9. Demineralised Water Pump
10. TSA Vessels

Applications :

Flat glass industry
Metal industry
Food industry
Semiconductor industry
Electronics industry
Chemical industry
Hydrogen filling stations
